4 Seat Long Cycle 48v 80ah 100ah 200ah Lifepo4 Lithium Battery For Golf Cart

Brand Name : CTS

Model Number : CTS-48100

Certification : CE, UN38.3, MSDS

Place of Origin : Hunan,China

MOQ : 10 unit

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 5000 untis per month

Delivery Time : 15-20 working days

Packaging Details : Polywood case

Warranty : 2 years

The charging ratio : 1C

The discharge rate : 1C

Battery type : golf cart lithium battery

Cycle life : >3500 cycles

Contact Now

4 seat golf cart lithium battery 48 volt, long cycle 48v 80ah 100ah 200ah lifepo4 lithium battery for golf cart


4 Seat Long Cycle 48v 80ah 100ah 200ah Lifepo4 Lithium Battery For Golf Cart

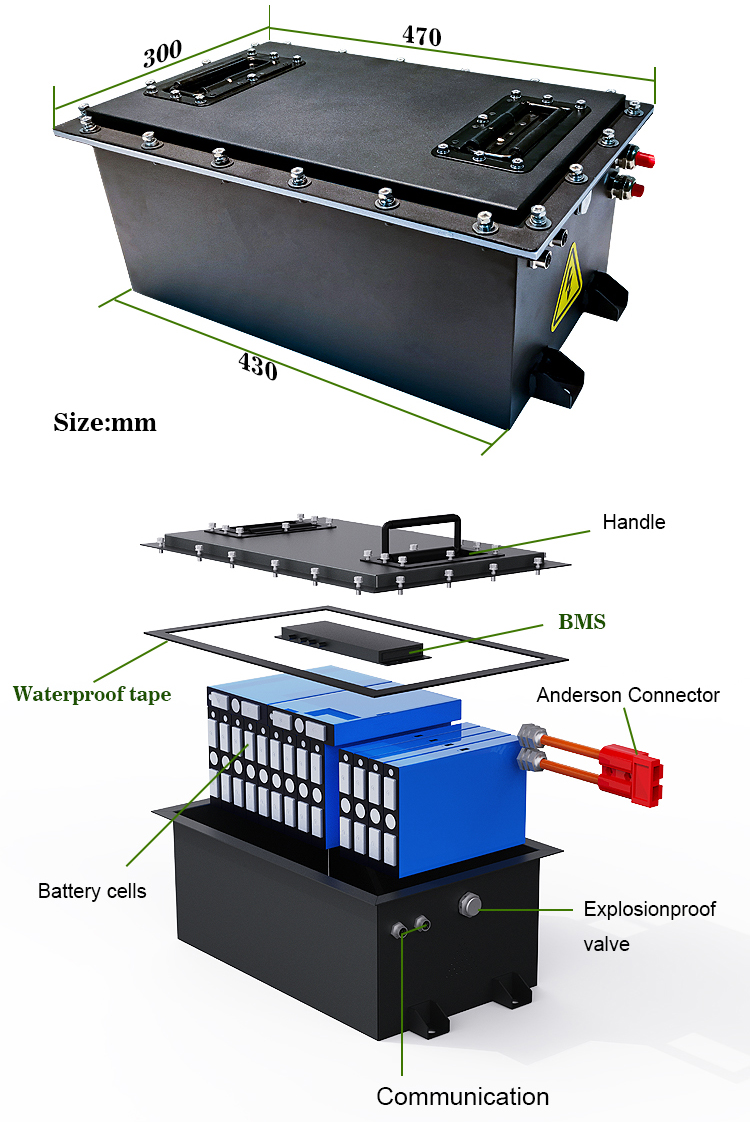

╣DIMENSIONS

╣PRODUCT ADVANTAGES

Title goes here.

Use only the highest quality batteries
 Batteries that use the same standard as the country

48V LiFePO4 Battery Pack built with the grade A high quality LiFePO4 cell, which provides 3500+ cycle life and a 10 year lifetime cycle use.* Use 100% brand new grade A LiFePO4 cells
* Charge current: ≤100A
* Continuous discharge current: ≤100A
* Csase materiald: metal case
* Over 6000 cycles at 80%DOD

╣PRODUCT DESCRIPTION

MODEL	CTS3680	CTS36160	CTS4880	CTS48160	CTS7280	CTS72160
ELECTRICAL SPECIFICATIONS
Cell Configuration	12S1P	16S1P	16S1P	16S2P	23S1P	23S2P
Rated Capacity	80Ah	80Ah	105Ah	160Ah	80Ah	160Ah
Rated Voltage	38.4V	51.2V	51.2V	51.2V	73.6V	73.6V
Energy(kwh)	3.072	4.096	5.376	8.192	5.888h	11.776
Dimensions(cm)	352025	45 * 30 *18	45 * 35 *25	503525	353525	653525
Weight	28Kg	40Kg	48Kg	68Kg	48Kg	90Kg
DISCHARGE/CHARGE SPECIFICATIONS
Discharge Cut-off Voltage	30V	40V	40V	40V	57.5V	57.5V
Max Continuous discharge current	80A	80A	100A	150A	80A	150A
Charging Limited Voltage	43.8V	58.4V	58.4V	58.4V	83.95V	83.95V
Max Charging Current	40A	40A	50A	80A	40A	80A
Charge Temp	0~55℃
Discharge Temp	-20~55℃
Recommended Operating Temp	15~35℃
Recommended Storage Temp	15~35℃, 45~75%RH
WARRANTY
2-Year warranty , 3500 cycles @85% DOD

* The voltage, capacity and power can be customized according to your requirements
 * BMS protects the battery from ignition and explosion, and prevents over discharge, overcharge and short circuit.
 * Accurate data conversion and temperature monitoring can minimize safety risks.
 * High temperature resistant conductor output mode is adopted to increase conductor reliability.
 * The sheet metal shell enhances the firmness of the battery pack and is easy to carry and assemble.
 * It meets international standards, with stable performance and long cycle life.
