CTS OEM Lithium Solution -E-bike Battery 60Ah 72V 50Ah 48V Motorcycle Electric Wheelchairs E-Scooters

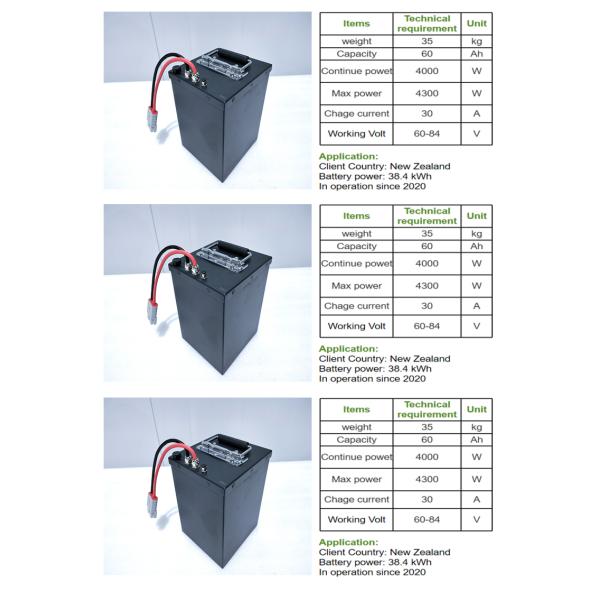

>>>>>1. Main Parameters
| | ITEMS | PARAMETERS |
| Electrical Characteristics | Cells | LFP83156241/LFP90160227-3.2V30AH |
| Nominal Voltage | 72V |
| Nominal Capacity | 60Ah |
| Energy | 4416Wh |
| Internal Resistance(AC) | ≤20mΩ |
| Cycle Life | >3500 cycles |
| Months Self Discharge | <3% |
| Efficiency of Charge | 100% @0.5C |
| Efficiency of Discharg | 96~99% @1C |
| Standard Charge | Working Voltage(V) | 60V-84V |
| Max. Charge Current(A) | 30A |
| Standard Discharge | Standard Current | 60A |
| Max Discharge Current | 3C, 180A |
| Discharge Cut-off Voltage | 57.5V |
| Environmental | Charge Temperature | 0ºC to 55ºC (32F to 131F) @60±25% Relative Humidity |
| Discharge Temperature | -20ºC to 60ºC (-4F to 140F) @60±25% Relative Humidity |
| Storage Temperature | -20ºC to 45ºC (-4F to 113F) @60±25% Relative Humidity |
| Mechanical | Approx.Weight | 35kg |
| Dimension (mm) | 360*172*290mm(customizable) |
| Other Design | Display SOC,BMS, Temperature |

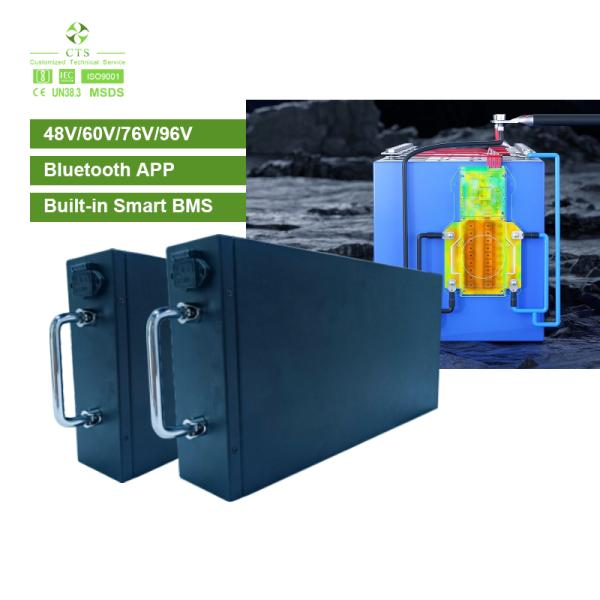

>>>>>2. Battery Function Design
>>>>>3. More 60v 72v OEM/ODM Batteries
<1>. 60V 35Ah battery Model No:PF6035
<2>. 60V 50Ah/80Ah/100Ah Battery Model No:PF6050/80/100
<3>. 72V 20Ah/30Ah/40Ah Battery Model No:PF7220/30/40
| Items | 72v 20Ah LFP Battery | 72v 30Ah LFP Battery | 72v 40Ah LFP Battery |
| Nominal Voltage | 73.6v | 73.6v | 73.6v |
| Nominal Capacity | 20Ah | 30Ah | 40Ah |
| Working Voltage(V) | 60V-84V | 60V-84V | 60V-84V |
| Energy | 1472Wh | 2208Wh | 2944Wh |
| Net Weight | 12kg | 19kg | 20Kg |
| Dimension (mm) | 200*172*290mm | 220*172*290mm | 400*172*290mm |
<4>. 72V 150Ah/300Ah Battery Model No:PF72150/300 | Nominal voltage | 72V |
| Nominal capacity | 150Ah/300Ah @0.5C Discharge |
| Dimension | 150Ah: 800*360*250 mm |
| 300Ah: 550*620*750mm |
| Weight | 150Ah: 100kg |
| 300Ah: 265kg |
| Working voltage | 60-84V |
| Discharge rate | Continuous:≤1c Max:3c/5s |
| Lifespan | ≥1500 cycles |
| Charge rate | ≤1c |
| Suggested discharge & charge rate | 0.5c & 0.5c |
| Operating temperature | Charging: 0°C ~ 45°C |
| Discharging: -20°C ~60°C |
Have you found the battery you prefer?
>>>>>4. How to assemble batteries
>>>>>5. Factory View
CTS has a modern production plant and strictly implements the ISO quality management system to ensure that each battery is manufactured to high standards.
★ Patented battery technology improves energy density and safety
★ Fully automatic production line to ensure product consistency and high quality
★ Strict quality inspection, each battery is 100% tested before leaving the factory
>>>>>6. Customer Feedback
>>>>> Order Information
Samples are available, welcome to order!
Trade terms: FOB Shenzhen or Guangzhou; EXW, CIF, DDU and DDP are all available.
Delivery time: 20-30 working days for sample orders, 30-35 working days for bulk orders.
You are welcome to visit our production base and check out our production line!
If you have any requirements for this lifepo4 battery, please feel free to contact me!
